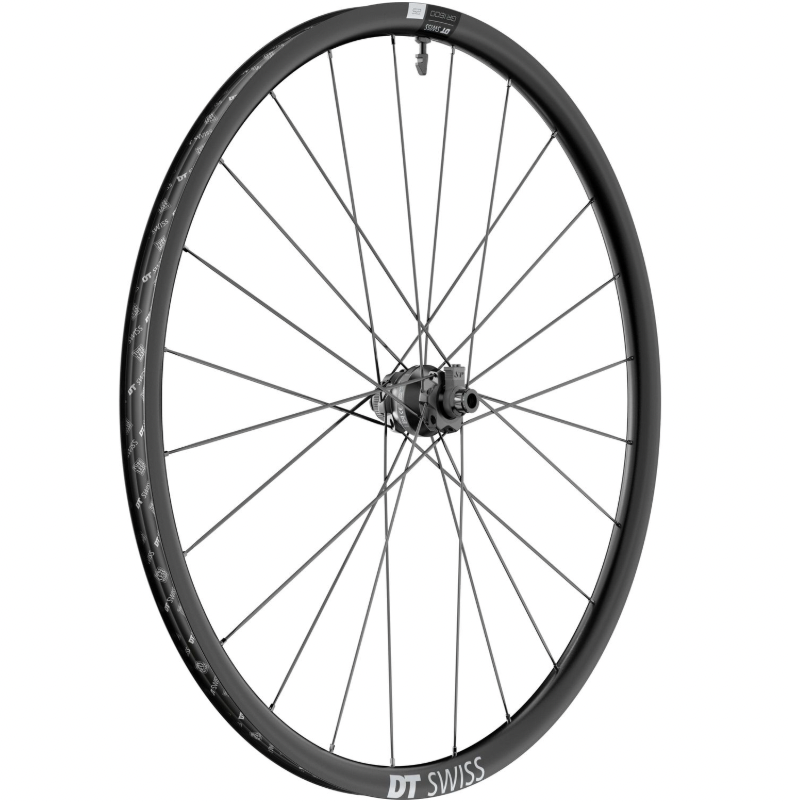

DT Swiss GR 1600 Front Wheel Overview
A special dynamo version of the GR 1600
– Working with Shutter precision DT have created a tough yet dependable dynamo option for gravel, ultra endurance events and even commuting
– 24mm inner width has proven itself the goldilocks dimension for gravel, narrow enough for running higher pressure road slicks but wide enough to take nice supple 47c’s for when you want to go off-grid
– Based on the SP PL-7 but with upgraded DT Swiss hub shell and bearing technology
– Very low drag, less that 1 watt at 30 KM/H with the lights off and only 4.2 watts of when the light is on
– 6 volt 3 Watt STVZO compliant output for maximum compatibility with common light units
– Hand built in Europe using DT’s proven Aero Comp butted spokes for a carefully tuned blend of stiffness and low weight, premium Prolock Squorx nipples are used for long term build stability and ease of maintenance
– Tubeless ready but can also be used with standard clinchers
– Front wheel comes ready for standard 12 x 100mm axle
– Maximum recommended system weight: 130 KG, enough for proper bike packing excursions
– Include tubeless rim tape and valve
– Weight: 1075g
DT Swiss GR 1600 Front Wheel Features
- Genuine DT Swiss GR 1600 SPLINE 25 front wheel DYNAMO
- Designed for gravel, cyclocross and bikepacking
- 700c / 622mm wheel size
- 25mm aluminium rim height
- 24mm internal rim width
- 28mm external rim width
- Tubeless-ready hooked rim
- DT Swiss Dynamo hub
- DT Aero Comp Wide Straightpull spokes
- DT Pro Lock Squorx aluminium nipples
- 12x100mm thru-axle fitment
- Center Lock rotor interface
- Maximum recommended system weight of 130kg
- Brand new stock in original packaging
DT Swiss GR 1600 Front Wheel Performance & Use
The DT Swiss GR 1600 Front Wheel is made for riders who move between roads, gravel tracks and rougher routes. Because the rim is 24mm wide internally, it gives wider tyres a secure and stable shape.
As a result, riders can use lower pressures with suitable tubeless tyres. This can improve grip and comfort on loose or uneven ground.
However, the rim is not limited to wide gravel tyres. It can also support narrower road-focused tyres. Therefore, the wheel works well for riders who use one bike across several types of terrain.
The welded aluminium rim combines strength with a practical overall weight. In addition, the DT Aero Comp Wide spokes provide a balanced mix of stiffness and controlled compliance.
The 350 Straightpull front hub uses sealed cartridge bearings. It also follows DT Swiss’s service-friendly design. Therefore, the hub is suitable for long rides and poor weather conditions where durability matters.
Key Features
- Front gravel wheel
- 700c / 28-inch size
- 24mm internal rim width
- 25mm rim height
- DT Swiss Dynamo hub
- Straightpull spoke construction
- 12x100mm axle standard
- Center Lock disc fitment
- Tubeless-ready rim
- 130kg system weight limit
Specifications
- Brand: DT Swiss
- Series: GR 1600 SPLINE
- Model: GR 1600 SPLINE 25
- Wheel Position: Front
- Intended Use: Gravel / Cyclocross / Bikepacking
- Wheel Size: 700c / 28″
- ETRTO: 24-622
- Rim Material: Aluminium
- Rim Joint: Welded
- Rim Type: Hooked / Crotchet Tubeless
- Tubeless Ready: Yes
- Rim Height: 25mm
- Internal Rim Width: 24mm
- External Rim Width: 28mm
- Hub: DT Swiss Dynamo hub
- Hub Design: Straightpull
- Hub Bearings: Sealed cartridge bearings
- Axle Standard: 12x100mm thru axle
- Brake Interface: Center Lock
- Spokes: DT Aero Comp Wide Straightpull
- Spoke Count: 24
- Spoke Pattern: Two-cross
- Nipples: DT Pro Lock Squorx ProHead aluminium
- Valve Type: Presta
- ASTM Classification: Category 2
- Maximum Recommended System Weight: 130kg
- Supplier-Stated Weight: Approx. 799g
- Colour: Black
Tyre Compatibility
- Suitable for compatible 700c gravel tyres
- Supports wide gravel tyres for comfort and grip
- Can also be used with suitable narrower road tyres
- Tubeless-ready with compatible rim tape, valve and tyre
- Can also be used with standard clincher tyres and inner tubes
- Always follow tyre-manufacturer pressure limits
Compatibility
- Designed for forks using a 12x100mm thru axle
- Compatible with Center Lock disc brake rotors
- Alternative axle setups may require separately available adapters
- Check your fork, axle and brake standards before ordering
- Rear wheel not included
Scope of Delivery
- 1 x DT Swiss GR 1600 SPLINE 25 front wheel
- Supplied in the original box
- Rear wheel not included
- Brake rotor not included
- Thru axle not included
- Tubeless accessories should only be listed as included when present in the supplied box
Condition
- Brand new stock
- New and unused
- Supplied in original packaging
- Front wheel only
- Matching rear wheel listed separately
Why Choose This Product
- Premium DT Swiss gravel wheel
- Wide rim supports modern gravel tyres
- Strong welded aluminium construction
- Reliable DT Swiss 350 front hub
- Tubeless-ready design
- Suitable for gravel riding and bikepacking
- Common 12x100mm front axle fitment
- Center Lock brake compatibility
